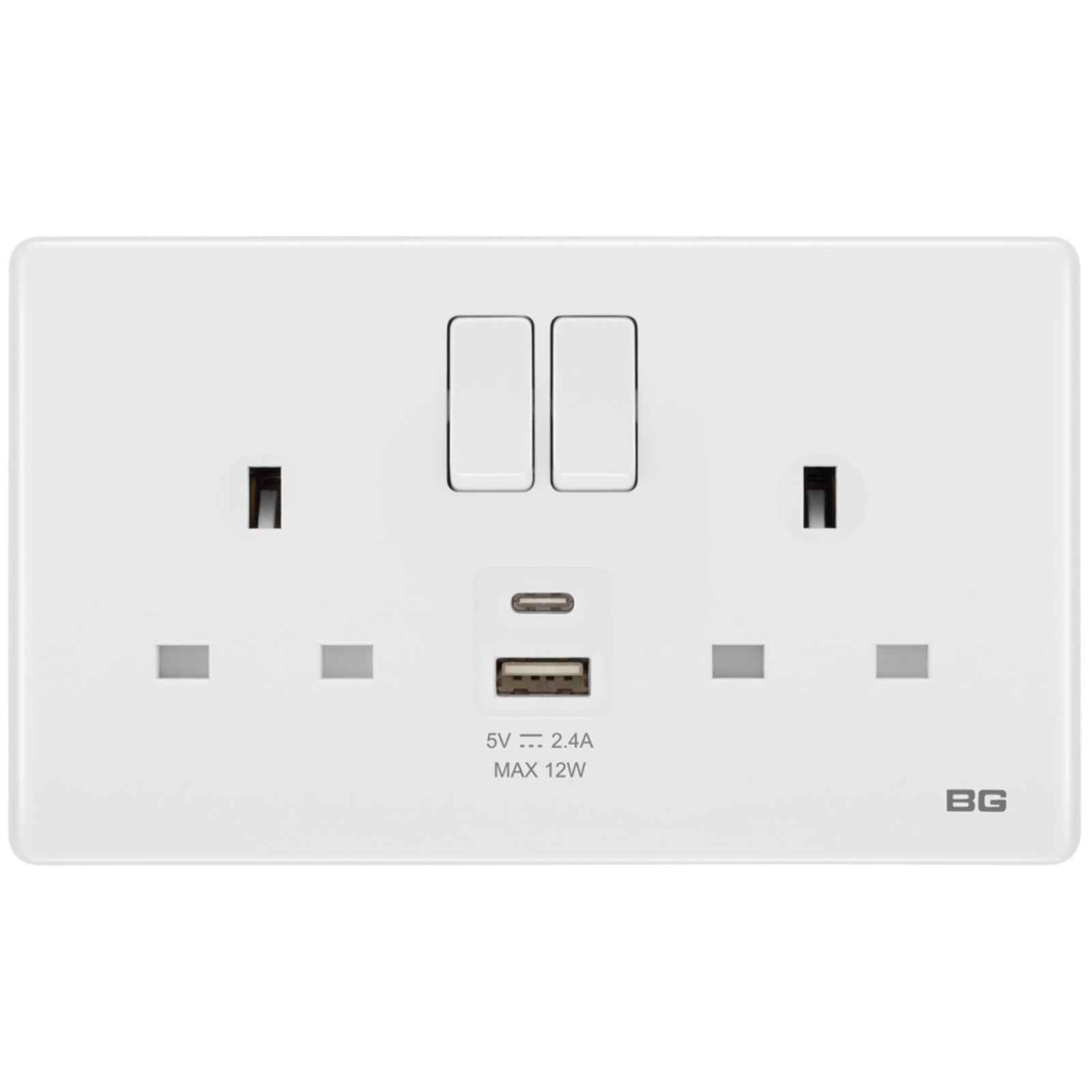

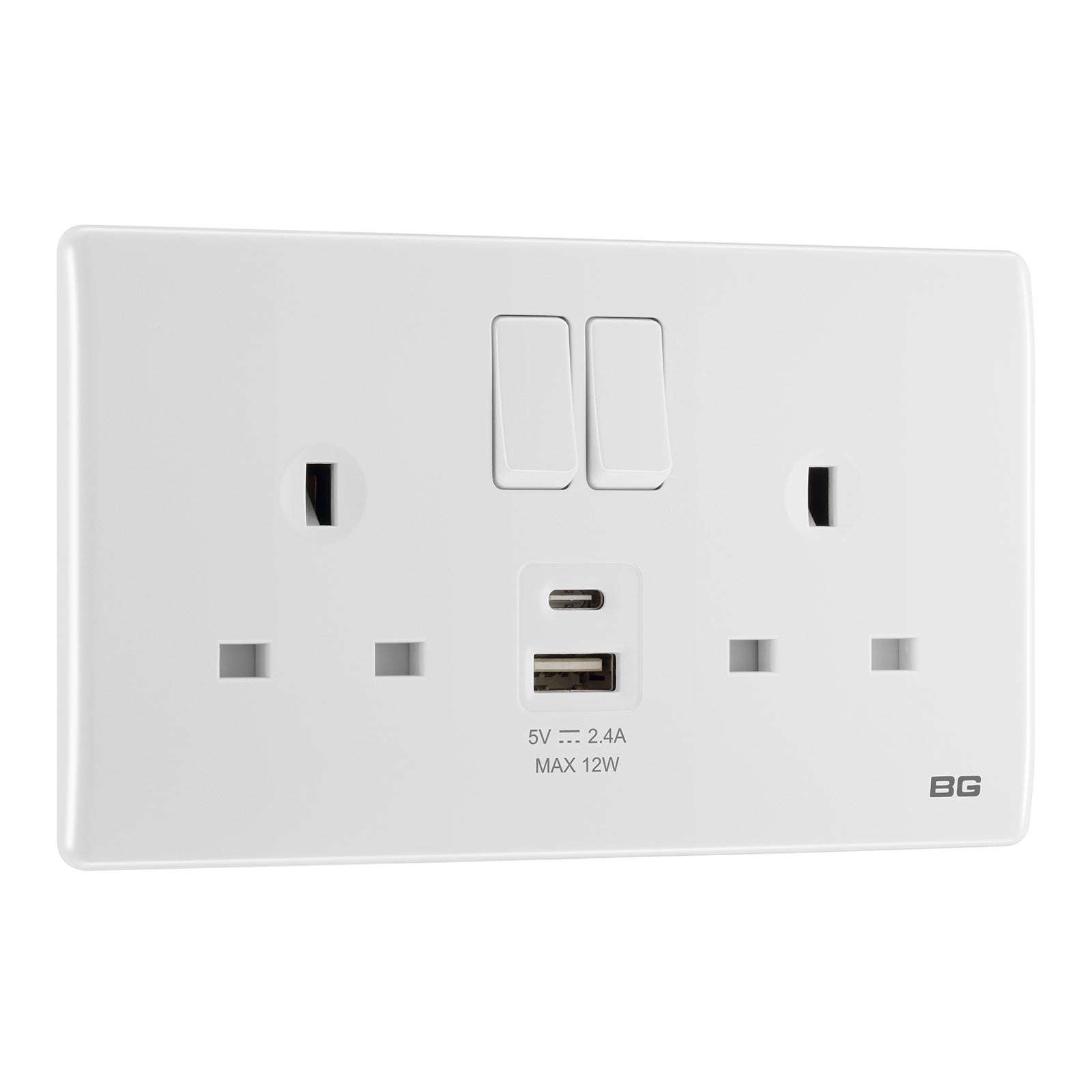

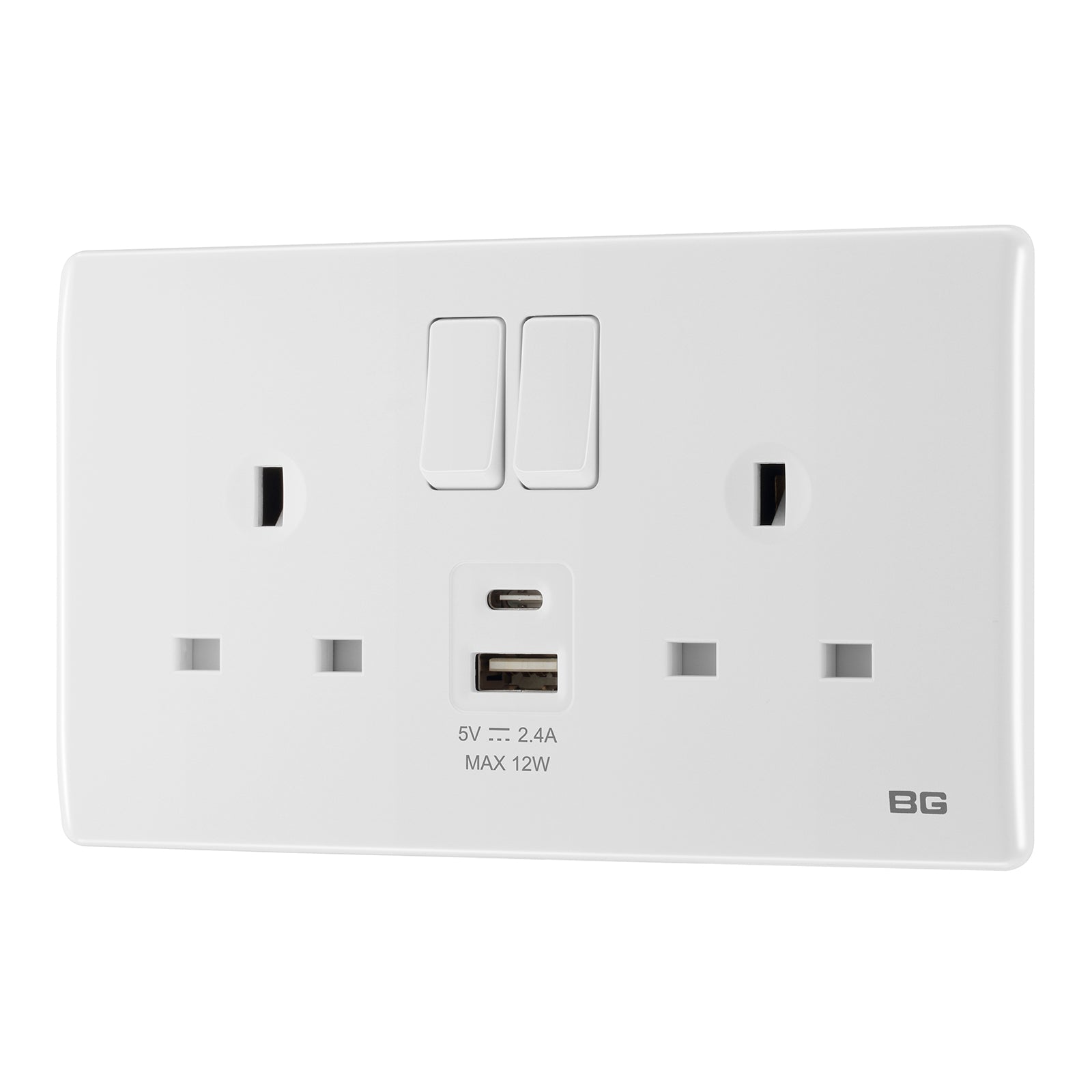

British General Neo Slimline White USB Power Socket

Dual USB Smart Charging Socket with UK Power Outlets

Product Overview

Maximize your power options with this sleek BG Neo Slimline white socket featuring integrated USB charging capabilities. Perfect for charging iPads, iPhones, tablets, mobile phones, cameras, and other USB devices while maintaining standard power socket functionality.

Key Features

• Dual USB Charging: Integrated USB-A & USB-C ports with 12W max output
• Smart Charging Technology: Automatically adjusts voltage for optimal device charging
• Advanced Safety: Built-in overcurrent protection with auto-recovery
• Antimicrobial Protection: Certified thermoset Urea material inhibits harmful bacteria (MRSA, E-Coli, Salmonella, Klebsiella Pneumonia)
• Professional Design: Sleek white finish with soft rounded edges

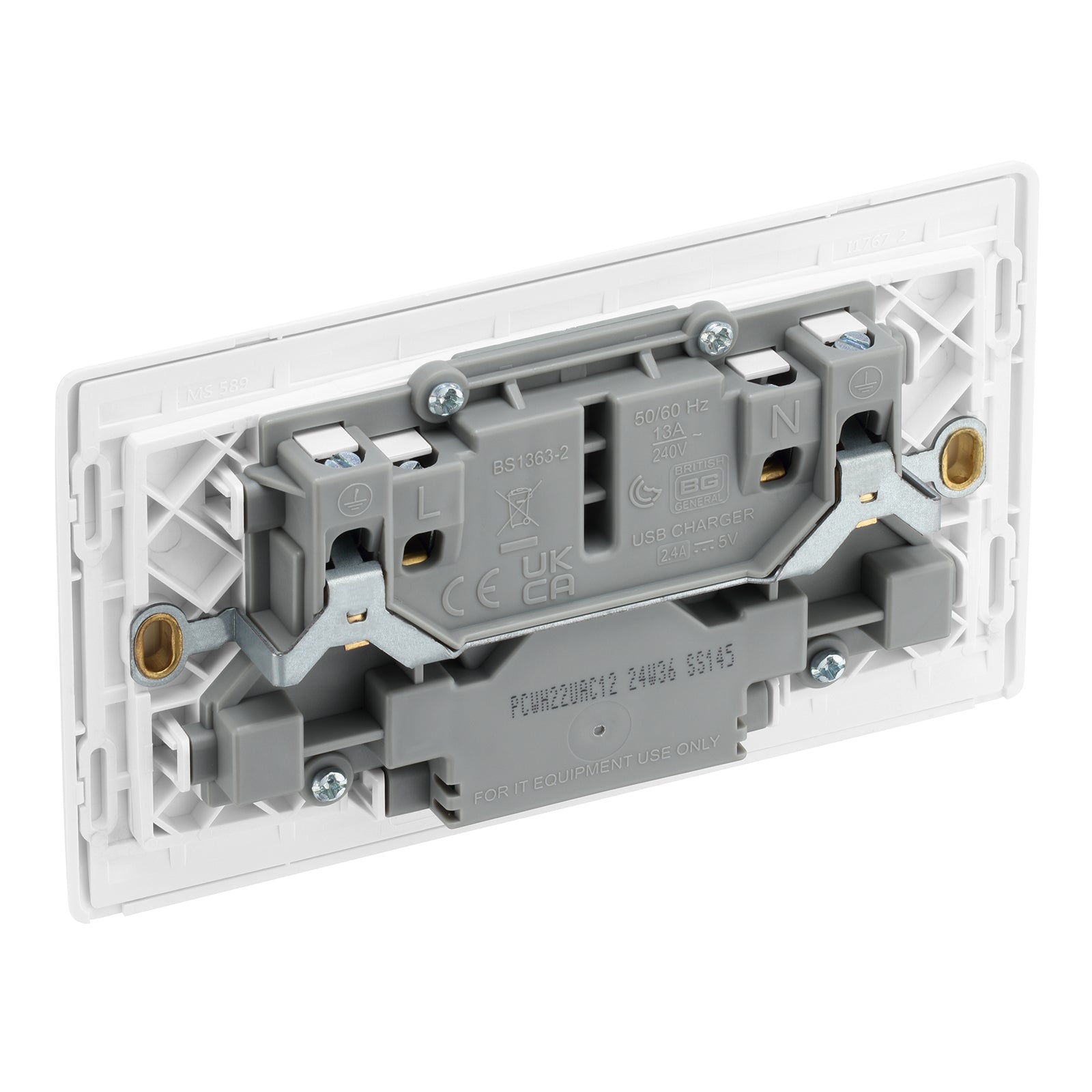

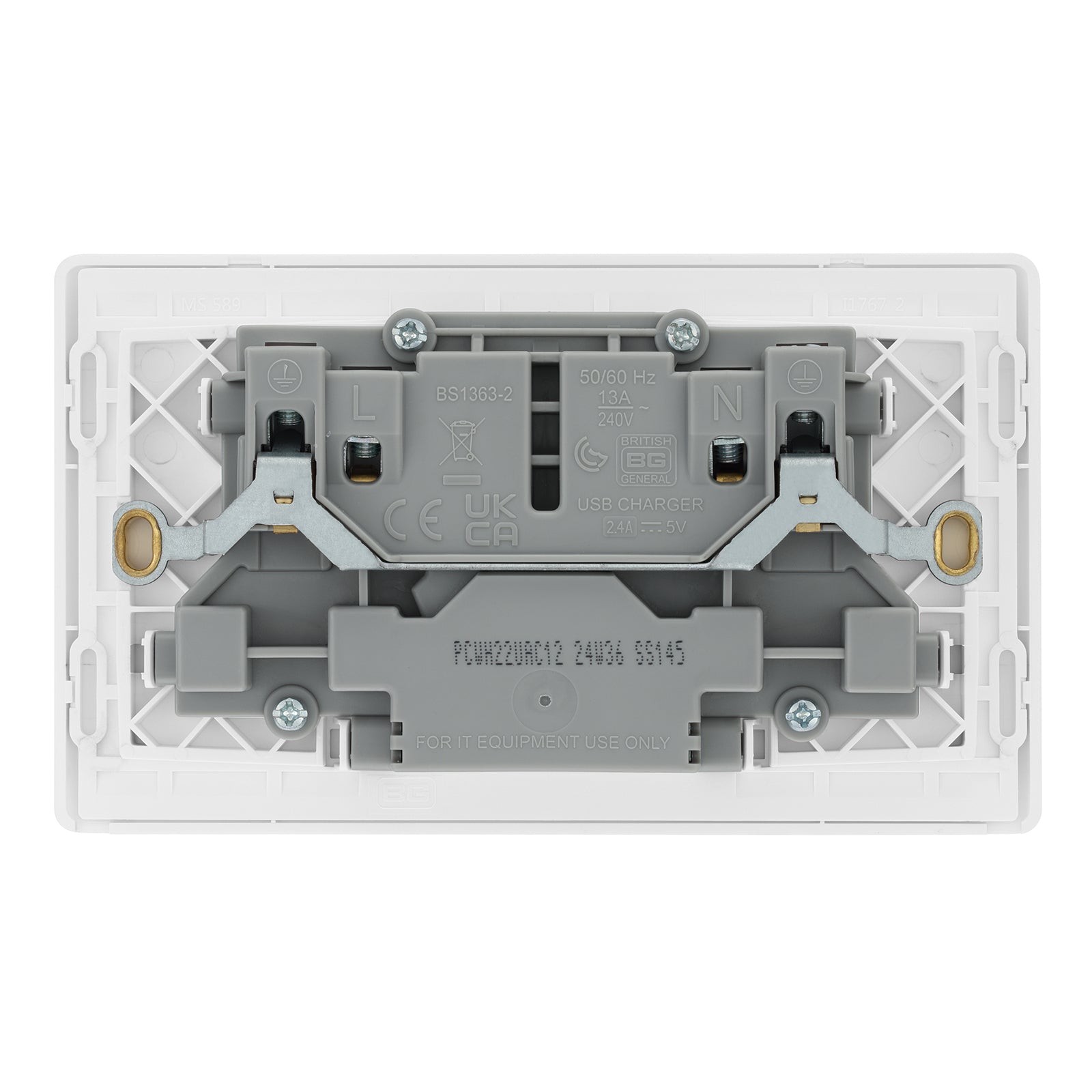

• Easy Installation: Color-coded terminals with backed-out screws
• Premium Construction: Twin earth fitted for circuit integrity

Technical Specifications

• Voltage Rating: 250V AC
• Current Rating: 13 Amp
• USB Output: 12W Max (5V, 2.4A shared across ports)
• Standby Power: <100mW
• Output Tolerance: <5%
• Mounting Requirements:
  • Minimum Box Depth: 25mm
  • Fixing Centers: 120.6mm
• Terminal Capacity:
  • 3 × 2.5mm²
  • 3 × 4.0mm²
  • 2 × 6.0mm²

Compliance Standards

• BS 1363-2:2016+A1:2018
• BS EN 62368-1:2014
• EN55032
• RoHS Compliant
• WEEE Compliant

Package Contents

• 1 × PCWH22UAC
• Fixing screws
• Installation instructions

Installation Note

Professional installation is recommended. Requires 25mm minimum mounting box depth.
